Passive K-2 12" Guangdong Line Array for Out Door Sound System

Passive K-2 12

$0.00 - $0.00 / Pieces
Type:K-2 3 way audio line array system
Usable bandwidth (-10dB):35 Hz-20 kHz
Maximum SPL1:147 dB
Nominal directivity (-6 dB):Horizontal :110°/70°symmetric ;90° asymmetric (35°/55° or 55°/33°)Vertical : depends on the number of elements and array curvature.
Transducers:LF: 2 x 12" cone drivers MF: 4 x 6.5"cone drivers HF:2 x 3" diaphragm compression drivers
Acoustical load:LF: bass-reflex,L-Vents MF: bass-reflex HF: DOsC waveguide, Panflex

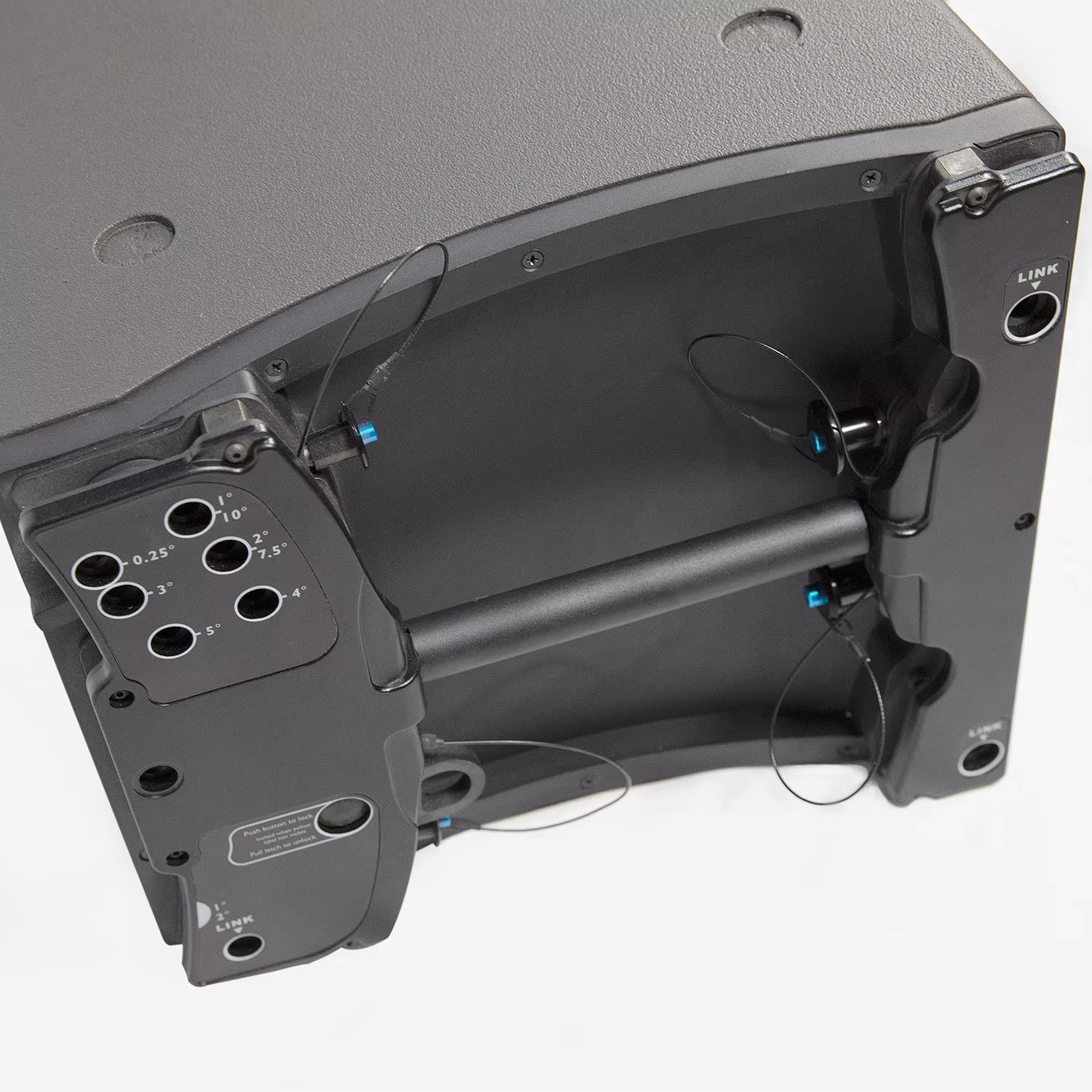

Rigging and handling:Captive 4-points rigging system 2 large side handles Inter-enclosure angles :0.25,1,2,3,4,5,7.5 0r 109
Dimension:1338 x354/286 x400 mm 52.7 x14/11.3 x 15.8 in
Weight (net):56kg/123lb
Request Quote
Request Quote

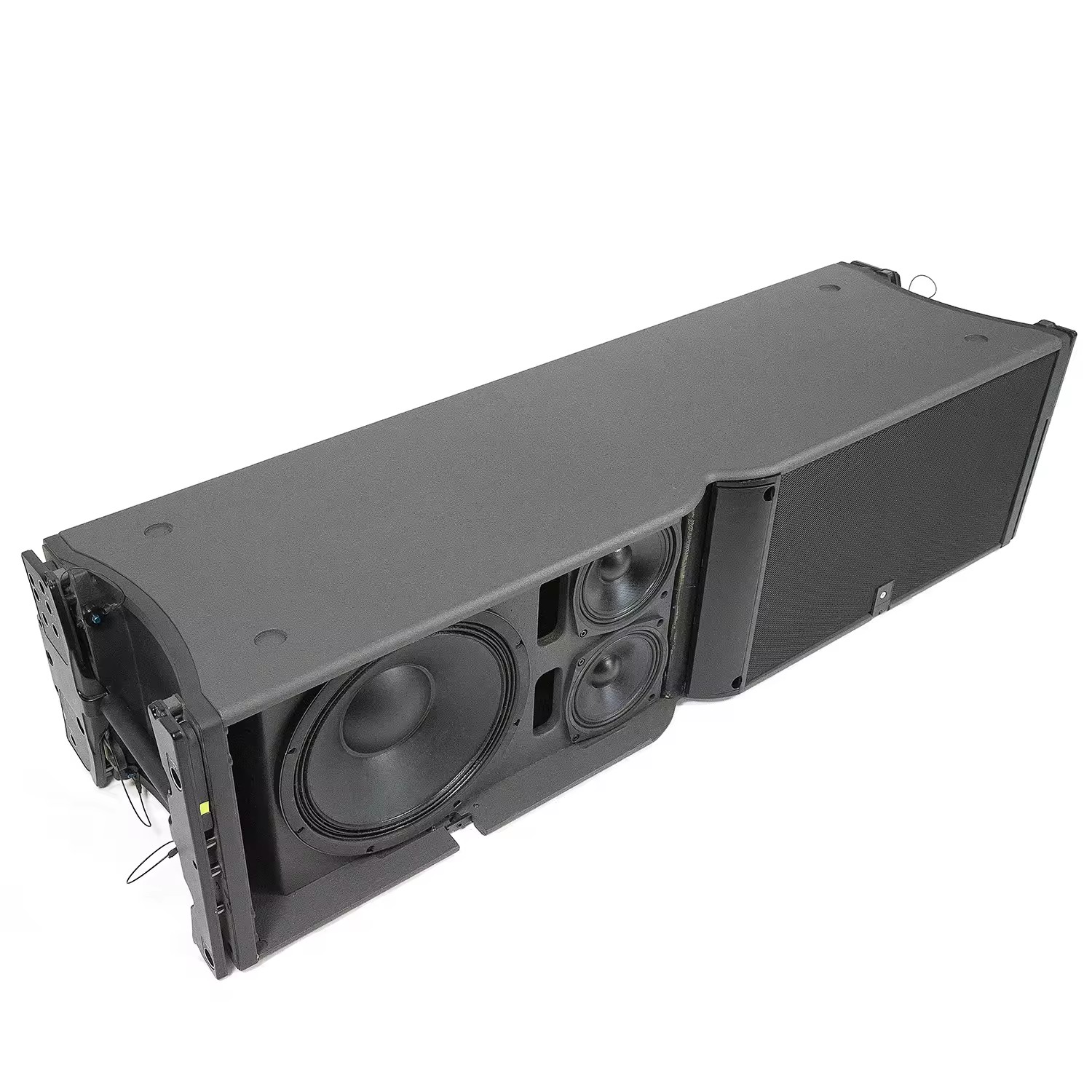

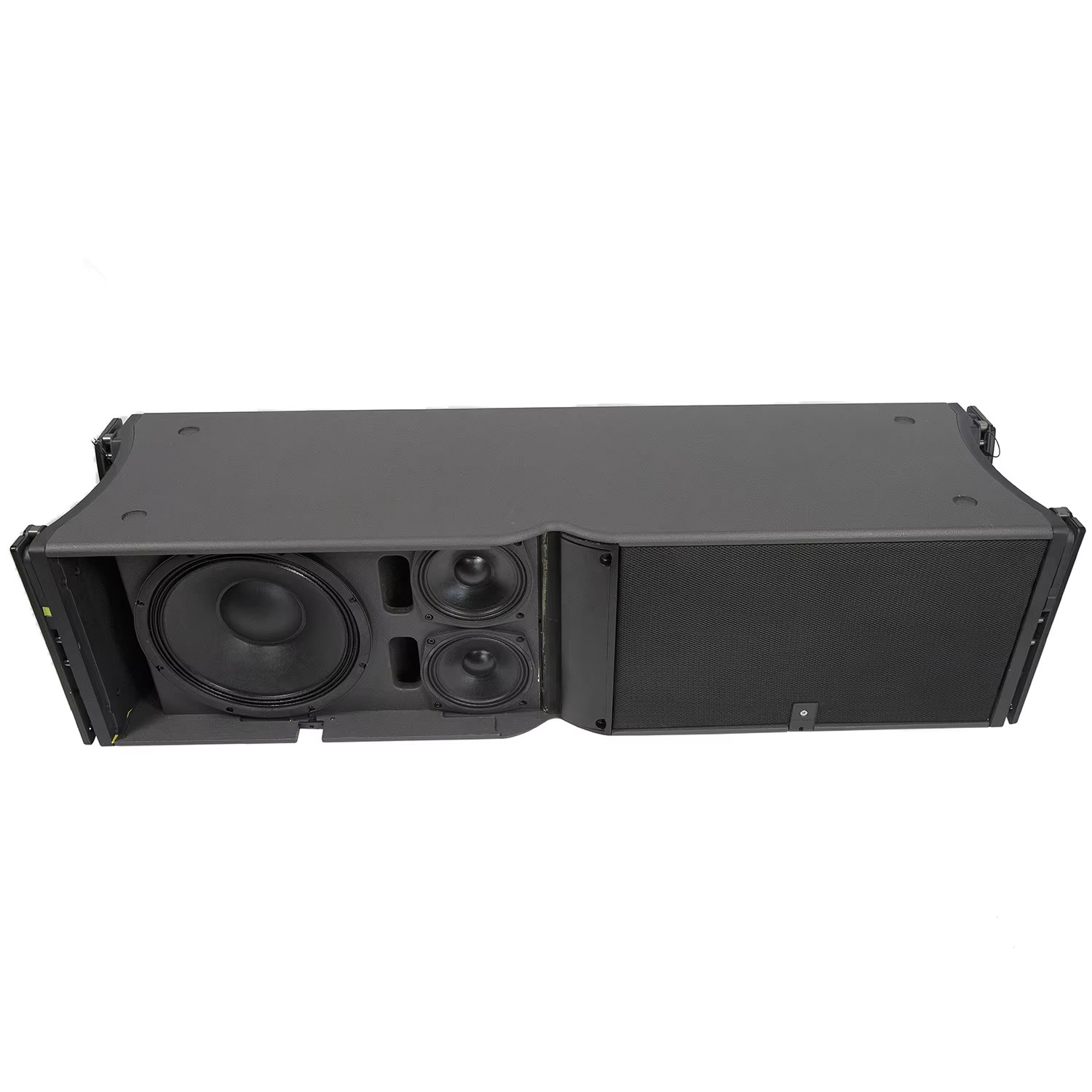

K-2 dual 12inch 3 way audio line array system

Made from enclosure with Russia's level of birch plywood.
Surface polyurea paint, waterproof, anti-corrosion, scratch and wear resistant.
Rigging components:high grade steel with anti-corrosion coating.

Built-in two 12-inch woofers, four 6.5-inch midrange speakers, and two 3-inch tweeters.
